Spec analysis — not yet tested
What this page is. A podiatrist’s reading of the manufacturer’s published specifications for the New Balance Fresh Foam X 1540v4. Nothing on this page has been measured, worn or scored by us yet. There is no score and no seal here on purpose: under our standard, a number only appears once a pair has been on the bench and on the road. When this shoe is tested, this page is replaced by the full review and the change is logged.
The original source notes describe the 1540v4 as a Made in USA motion-control model with widths up to 6E, Fresh Foam X and a dual insert system. Those are attributed product descriptions, not evidence of prescribing frequency or patient outcomes. Below, manufacturer and retailer figures are distinguished; no original product or wear-test records are available for this guide.
New Balance Fresh Foam X 1540v4: A Podiatrist’s Specification Analysis
On this page
- What New Balance says the Fresh Foam X 1540v4 is
- New Balance Fresh Foam X 1540v4 specifications
- What the spec sheet suggests — and what only a test can answer
- Who the New Balance Fresh Foam X 1540v4 is probably for
- New Balance Fresh Foam X 1540v4: what changed from the previous version
- Questions people ask about the Fresh Foam X 1540v4
What New Balance says the Fresh Foam X 1540v4 is
New Balance sells the 1540v4 as a Made in USA motion-control shoe. Its listing leads on the ROLLBAR stability post system, which the brand describes as helping to “control rear-foot movement for enhanced support”, and on a Fresh Foam X midsole it calls “our most cushioned Fresh Foam experience”, made with approximately 3% bio-based content. New Balance’s own product copy also names an engineered mesh upper and “a new dual insert system” for personalised fit.
Holabird Sports, a specialist running retailer, files the same shoe under both “neutral support” and “motion control” and describes it as being for combating overpronation, with an Ndurance rubber outsole. That double filing is not an error worth mocking — it is a fair reflection of a shoe that has drifted softer while keeping a rearfoot control device.
New Balance Fresh Foam X 1540v4 specifications
Source column tells you where each figure comes from. “New Balance” means the brand’s own US product page. A retailer name means the brand does not publish that figure and a retailer does. “Not published” means nobody reliable does — those are the figures our bench measures first.
| Specification | Figure | Source |
|---|---|---|
| Category | Motion control (New Balance sells it as Made in USA motion control; Holabird Sports files it under both “neutral support” and “motion control”) | New Balance / Holabird Sports |
| Support device | ROLLBAR stability post system — “helps control rear-foot movement for enhanced support” | New Balance |
| Midsole | Fresh Foam X, approx. 3% bio-based content | New Balance |
| Upper | Engineered mesh; “new dual insert system” for personalised fit | New Balance |
| Outsole | Ndurance lightweight solid rubber | New Balance / Holabird Sports |
| Heel-to-toe drop | 4 mm — New Balance states the figure is approximate, because of variances in development and manufacturing | New Balance |
| Weight | 12.8 oz (363 g) at men’s US 9 — note this is a size 9, not the men’s US 10 our bench uses | Holabird Sports (retailer) |
| Widths, men's | D (Standard), 2E (Wide), 4E (X-Wide), and 6E on Made in USA colourways | New Balance (published, width selector on the product page) |
| Stack heights | Not published | — |
| Internal toe-box width and depth | Not published | — |
| Torsional rigidity / heel-counter stiffness | Not published by anyone | — |
| List price | $199.99 at newbalance.com; $199.95 at Holabird Sports | New Balance / Holabird Sports |
| Style codes seen | M1540BG4, M1540BK4 | New Balance / Holabird Sports |
Figures checked September 9, 2026. Sources: newbalance.com product listing and Holabird Sports, both read 9 September 2026. New Balance’s own site blocks automated access, so where a figure appears only at a specialist retailer it is labelled as such rather than presented as the brand’s.
What the spec sheet suggests — and what only a test can answer
A 6E option is one fitting consideration. The width designation does not establish internal volume, stiffness or fit for a particular foot. A rheumatoid forefoot, bunion or Charcot foot may require individualized footwear or device fitting; for Charcot foot, follow the treating team’s footwear, insert or brace instructions. This retail model’s width label alone is not proof that it meets those needs, and no prescribing-frequency record is documented here.
A 4 mm drop in a motion-control shoe is an unusual combination. Traditional motion-control shoes sat higher at the heel. Four millimetres puts more demand on the calf and the Achilles through the gait cycle. For most walkers that is unremarkable; for someone with an irritable Achilles or a calf that has been tight for years, a lower drop is a change their tissue has to absorb, and New Balance’s own note that the figure is approximate means the real number on a given pair could sit either side of it. This is exactly the sort of claim our bench exists to settle.
The dual insert system is the orthotic question in disguise. A shoe that ships with two inserts is telling you its internal volume is adjustable — and adjustable volume is the single most useful property a shoe can have for someone who wears a custom device. Pull the thicker insert, drop the orthotic in, and the shoe may accept a device that would otherwise raise the foot out of the heel counter. But “may” is doing real work in that sentence. Nobody publishes the internal depth, and until we put an actual orthotic in an actual pair and rate the volume, anyone telling you this shoe fits your device is guessing.
What the move to Fresh Foam X might cost. The clinical case for a 1540 was always that it was firm and it resisted twisting. A softer, more cushioned midsole is a pleasant thing to walk on and it is not automatically a downgrade — but softness and rearfoot control pull against each other, and the ROLLBAR post has to do more work in a softer shoe than it did in a firmer one. Whether the v4 still resists torsion the way the v3 did is a question with a physical answer, and we will not pretend to have it from a spec sheet.
Who the New Balance Fresh Foam X 1540v4 is probably for
Read from the published specification, not from wear. Treat these as hypotheses the test will confirm or overturn.
- You need width beyond 4E — very few supportive shoes are made in 6E at all.
- You wear a custom orthotic and have struggled with volume — the dual insert system is designed to free up depth.
- You have been told you overpronate and want a shoe built around that rather than a neutral shoe with a firm post added.
- Made in USA matters to you — New Balance markets this model on that basis.
- Your Achilles or calf is currently irritable — 4 mm is a low drop for a shoe in this category and the figure is approximate by New Balance’s own admission.
- You are replacing a 1540v3 and chose it for stiffness — the v4 moved to a softer midsole and nobody has published a torsional comparison.
- You need a published stack height or toe-box measurement to plan around a deformity — neither figure exists yet, from anyone.
- You want a light shoe — 12.8 oz at a size 9 is heavy, and that is the retailer’s figure, not a measured one.
New Balance Fresh Foam X 1540v4: what changed from the previous version
New Balance does not publish a changelog, so this section is limited to what the brand states about the current model and what can be read from its own listings. Two things are stated by New Balance itself: the v4 runs a Fresh Foam X midsole, and it introduces a new dual insert system alongside an engineered mesh upper. The Fresh Foam X branding is new to this model line — it appears in the v4’s product name and did not in the v3’s.
Beyond that, comparisons circulating online — that the v4 is softer, less rigid, or roomier through the forefoot than the v3 — are secondhand, and some of them originate from AI summaries rather than from anyone who owned both pairs. We are not going to restate them as fact. If you are replacing a v3 specifically because it was stiff, treat that as an open question until this page carries measurements.
Related motion-control and stability reviews on this site: Brooks Beast GTS 26, New Balance 860v15 and HOKA Gaviota 6.
Where to buy
Disclosure: the links below are paid links. If you buy through them Amazon pays us a commission at no cost to you. Commissions never influence a score, a ranking or the seal, and this page carries no score because the shoe has not been tested — see our independence policy.
Amazon listings are colourway-specific; the button opens one common colourway and you can switch colour and width there. List price $199.99 on September 9, 2026; prices move, check the listing.
Questions people ask about the Fresh Foam X 1540v4
Is the New Balance 1540 a good shoe?
It is a durable, unusually wide, genuinely supportive shoe, and for the specific job of accommodating a broad or deformed foot that also needs rearfoot control, very little competes with it. Whether it is good for you depends on things nobody has published: how much internal depth it gives up to your orthotic, how stiff it is in torsion, and whether a 4 mm drop suits your calf. It is also expensive at $199.99 and heavy at 12.8 oz. We have not tested this pair, so there is no score on this page.
Which New Balance do podiatrists recommend?
Honestly, there is no single answer, and any page that gives you one is selling something. In a clinic the model follows the foot: a broad, overpronating foot that needs depth points toward the 1540 or the 928; a straightforward stability need points to the 860; a neutral cushioned need points to the 880 or 1080. What a podiatrist is actually choosing is width, depth, heel-counter stiffness and torsional rigidity — and those are the four things almost nobody publishes, which is the reason this site exists. Our reviews of the 860v15 and 880v15 cover the other end of that range.
What are the key differences between the New Balance 1540v3 and 1540v4 shoes?
The two the brand states itself: the v4 uses a Fresh Foam X midsole, and it adds a dual insert system with an engineered mesh upper. The widely repeated claims that the v4 is softer, less supportive or wider in the toe box than the v3 are secondhand — several trace back to AI-generated summaries rather than to anyone who measured both. We would rather tell you the comparison is unsettled than repeat it.
Is the New Balance 1540 a stability shoe?
New Balance sells it as motion control, which is a step beyond stability: the ROLLBAR post is designed to limit rear-foot movement rather than gently guide it. Confusingly, Holabird Sports lists the same shoe under both “neutral support” and “motion control”, which reflects a real drift — the v4 is softer than 1540s used to be. The category label matters less than the physical stiffness, and that is measurable. It has not been measured here yet.
What happens next
This page currently compares attributed published specifications. No original measurements or wear-test records are documented. Any future first-hand report would require retained photographs, measurement methods and wear notes. Our scoring and award programme remains an unvalidated proposal; no score or Seal follows automatically from a test. The Orthotic Volume Rating is also a proposed notation, not a recorded measurement for this shoe. Corrections to source information can be reported through the published contact route.
Page type: spec analysis. Acquisition: not yet purchased. Last verified: September 9, 2026. Author: Tom Biernacki, DPM, FACFAS — board-certified foot and ankle surgeon, about.
Where this shoe fits
Guides on this site that weigh the New Balance Fresh Foam X 1540v4 against the problem you are actually trying to solve:
- Best shoes for overpronation — what stability geometry does, and who it pushes the wrong way.
- Best shoes for flat feet — a flexible flatfoot and a rigid one need opposite things.
- Best shoes for plantar fasciitis — what a shoe actually has to do for heel pain.
- Best shoes for wide feet — why sizing up is the wrong fix for a wide foot.
- Best shoes for sesamoiditis — the shoe criteria when the pain is under the big-toe joint, and the padding protocol that goes with them.
Browse every shoe on file or read how we test.

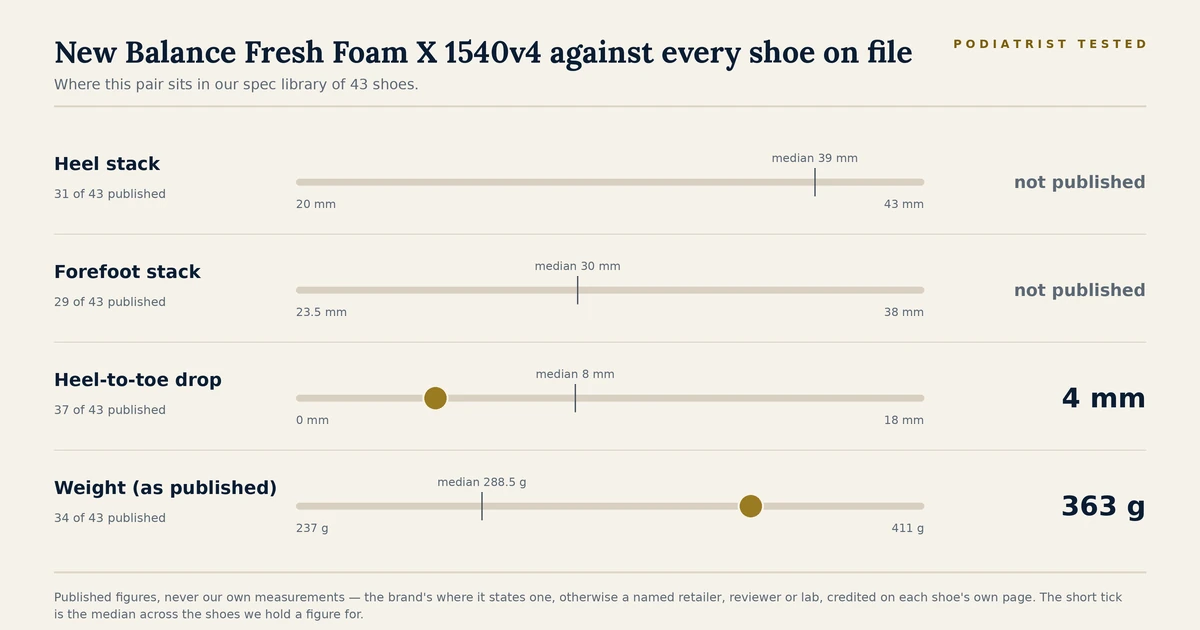

Compare it with the rest: every New Balance review · the shoes for flat feet · the shoes for overpronation · the shoes for wide feet · everything for running · everything for walking · the extra-wide fittings · the wide fittings. Every list shows the published drop, stack, weight, widths and price side by side.
